THE ULTIMATE CHOICE FOR LONG RIDES

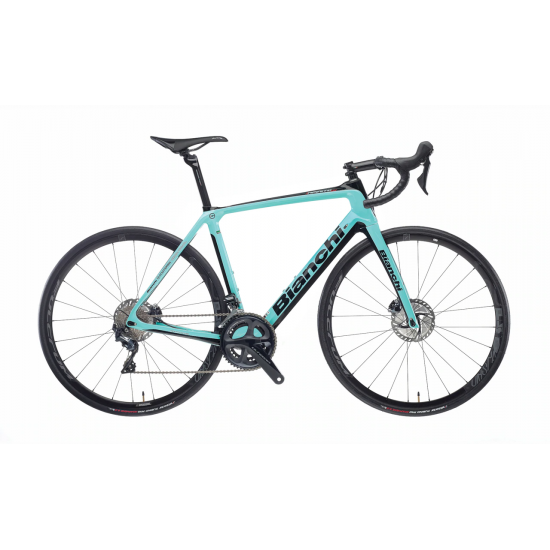

INFINITO CV DISC CARBON BIKE IS THE ULTIMATE CHOICE FOR LONG RIDES – PRO RACES OR GRANFONDO EVENTS. DESIGNED TO BE FASTER AND SMOOTHER, THE INFINITO CV IS BUILT FOR ENDURANCE.
NEW FRAME DESIGN
The Infinito CV Disc, with its re-designed frame shape, has been developed with endurance-specific geometry and thru-axle rear dropouts for optimum integration with disc brakes.
Longer chainstays help smooth the ride, and a taller aero headtube gives the rider a low-stress neck position, enhanced by Countervail’s vibration cancelling capacity. The specific CV tuning process reduces rider’s muscle fatigue and increases control for a better overall performance, especially on bumping roads and cobblestone sections.
The new Infinito CV Disc has been engineered to be also more aero by using a new integrated-look carbon seatpost. The bike is also compatible with Metron 5D aero handlebar for those who want a special touch to the sleek overall aesthetic of the new model.
LESS FATIGUE MORE CONTROL
Like Bianchi’s first-generation model, the new Infinito CV Disc is engineered with the revolutionary Bianchi CV System, using patented Countervail carbon material, to cancel road vibrations.
WHAT IS COUNTERVAIL®?
The key technology Countervail® is a carbon composite-material system that combines patented structural carbon with viscoelastic resin.
BIANCHI CV INTEGRATED VIBRATION CANCELLING SYSTEM
Bianchi collaborated with Materials Sciences Corporation to develop our innovative and exclusive use of the MSC’s patented Countervail® integrated vibration cancelling system for cycling.
Countervail® is a carbon composite-material system that, with special fiber architecture, combines patented structural carbon with viscoelastic resin. Countervail® cancels 80% of vibrations while increasing the stiffness and strength of our carbon frames and forks.
Countervail® is embedded within the entire frame of Bianchi CV high-performance road and MTB models: Specialissima, Oltre XR4, Oltre XR3, Infinito CV, Aquila CV and Methanol CV.
PROVEN IN NASA AEROSPACE OPERATIONS
Traditional passive damping in frames using superficial rubber inserts and isolators are marginally effective compared to the integrated carbon Countervail® system developed by Bianchi for cycling and proven in the extreme conditions of NASA aerospace operations.
OPTIMIZED FRAME PERFORMANCE
The specific CV tuning process reduces rider’s muscle fatigue and increases control for a better overall performance, especially on bumping roads and cobblestone sections.
The Infinito CV Disc is fitted with a shallow curved blade, aero, full-carbon fork. Featuring a 1.1/8 -1.5in taper steerer and 12x100mm thru-axle drop outs, for steering stability and precision and braking performance.
The fork weights 390g.
INTEGRATED DISC BRAKES MOUNT
The Infinito CV Disc frame and fork feature fully-integrated Flat Mount Disc brakes, delivering uniform power, increased efficiency and precise modulation for strong predictable braking, in any weather conditions. Compatible with 140 or 160mm rotors. Cables for brakes and drivetrain are all internally routed.
Riding long distances requires a special focus on perfect fit. The downtube diameter on the 57-61cm frames is Infinito CV Disc is increased by 5mm to increase torsional stiffness and optimize weight.
Infinito CV Disc uses an integrated-look carbon seatpost, featuring a saddle rail clamp that is adjustable for fore/aft position from +25 to -10mm. This allows riders to create the perfect seated pedaling position for maximum performance over extended hours.
LARGER VOLUME TYRES
When riding long distances with extended time in the saddle, larger volume tyres are the answer. The Infinito CV Disc is compatible with tyres up to 32mm. High-volume tyres add extra grip, comfort and control, without affecting rolling efficiency, or speed.
470 500 530 550 570 590 610
INFINITO CV DISC CARBON W/BIANCHI CV, MECHANICAL/ELECTRONIC DI2/EPS SHIFTING COMPATIBLE, COMPATIBLE WITH 32" TIRE, PRESSFIT 86,5X41MM, THRU AXLE 12X142MM, SIZES 47-50-53-55-57-59-61CM
BIANCHI FULL CARBON W/BIANCHI CV DISC, 1.5" HEAD, FLAT MOUNT, THRU AXLE 12X100MM, COMPATIBLE WITH 32" TIRE
SHIMANO ULTEGRA ST-R8020 2X11SP, HYDRAULIC DISC BRAKE, SHIMANO ULTEGRA ST-R8025 2X11SP, SMALLER LEVER SIZE FOR SIZES 47/53CM
SHIMANO ULTEGRA RD-R8000 GS 11SP
SHIMANO ULTEGRA FD-R8000
SHIMANO ULTEGRA FC-R8000 50X34T, HOLLOWTECH II, CRANK LENGTH: 170MM-47/53CM, 172.5MM-55/59CM, 175MM-61CM
SHIMANO ULTEGRA CN-HG701-11, 11SP
SHIMANO ULTEGRA CS-R8000 11SP, 11-12-13-14-16-18-20-22-25-28-32T
VITTORIA RUBINO PRO G2.0 GRAPHENE 700X28
REPARTO CORSE 3D FORGED ALLOY 6061, RISE +/-7°, 1 1/8", EXT: 70MM-47CM, 90MM-50CM, 100MM-53CM, 110MM-55CM, 120MM-57/61CM
REPARTO CORSE COMPACT FLAT TOP, ALLOY 2014 DIAM. 31,8MM, REACH 80MM, DROP 130MM, SIZE: 400MM-47/50CM , 420MM-53/57CM, 440MM-59/61CM
BLACK SOFT MICROFIBER TAPES W/SHOCKPROOF EVA-139
INFINITO FULL CARBON, CLAMP WITH ALLOY HEAD ADJUSTABLE AND REVERSIBLE +/- 35MM, LENGTH: 350MM-47/57CM, 380MM-59/61CM, SETBACK 25MM/-10MM
FI'ZI:K ARGO TEMPO R5, RAIL S ALLOY, 260X150MM
SHIMANO SM-RT800 CENTER LOCK, DIAM. 160MM
- Stock: In Stock
- Model: 102436
