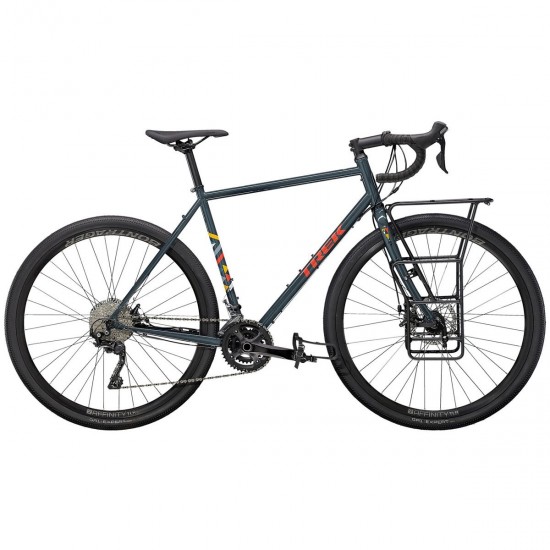

2022 Trek 520 Grando Road Bike

2022 Trek 520 Grando Road Bike
Top Brand
2022 Trek 520 Grando Road Bike

2022 TREK 520 GRANDO

Frame Trek butted chromoly disc touring, rack & fender mounts, 135x5mm QR
Fork 520 alloy disc touring, rack mounts, 100x5mm ThruSkew
Hub front Shimano M475, 6-bolt disc, 100x5mm QR
Hub rear Shimano M475, 6-bolt disc, 135x5mm QR
Rim Bontrager Affinity Disc, Tubeless Ready, 36-hole, 21mm width, presta valve
Spokes 14g stainless steel
Tire Bontrager GR1 Expert, Hard-Case Lite, wire bead, 60 tpi, 700x40c
Max tire size 29x2.00" without fenders
Shifter Shimano Tiagra R4700, 10 speed
Front derailleur Shimano Tiagra 4700, 34.9mm clamp, down swing
Rear derailleur Shimano GRX RX400, long cage, 36T max cog
*Crank Size: 48, 51
ProWheel forged alloy, 42/28, 2-piece, 170mm length
Size: 54, 57, 60, 63
ProWheel forged alloy, 42/28, 2-piece, 175mm length
Cassette Shimano HG50, 11-36, 10 speed
Chain KMC X10, 10 speed
Pedal Wellgo nylon body, alloy cage
Saddle Bontrager Arvada, steel rails, 138mm width
*Seatpost Size: 48
Bontrager alloy, 27.2mm, 12mm offset, 250mm length
Size: 51, 54, 57, 60, 63
Bontrager alloy, 27.2mm, 12mm offset, 330mm length
*Handlebar Size: 48
Bontrager Comp VR-C, alloy, 31.8mm, 100mm reach, 124mm drop, 40cm width
Size: 51, 54
Bontrager Comp VR-C, alloy, 31.8mm, 100mm reach, 124mm drop, 42cm width
Size: 57, 60, 63
Bontrager Comp VR-C, alloy, 31.8mm, 100mm reach, 124mm drop, 44cm width
Handlebar tape Bontrager Gel Cork tape
*Stem Size: 48
Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 80mm length
Size: 51
Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 90mm length
Size: 54, 57
Bontrager Elite, 31.8mm clamp, Blendr compatible, 7 degree, 100mm length
Size: 60, 63
Bontrager Elite, 31.8mm clamp, Blendr compatible, 7 degree, 110mm length
Headset 1-1/8'' threadless, sealed cartridge bearings
Brake TRP Spyre C 2.0 mechanical disc, 160mm rotor
Cargo rack Bontrager Carry Forward

There are no reviews for this product.

Write a review

Unlimited Blocks, Tabs or Accordions with any HTML content can be assigned to any individual product or to certain groups of products, like entire categories, brands, products with specific options, attributes, price range, etc. You can indicate any criteria via the advanced product assignment mechanism and only those products matching your criteria will display the modules.

Also, any module can be selectively activated per device (desktop/tablet/phone), customer login status and other criteria. Imagine the possibilities.

USD 1,180.00
  • Stock: In Stock
  • Model: T179237
