2022 TREK CHECKPOINT SLR 7
Frame | 700 Series OCLV Carbon, IsoSpeed, downtube storage door, internal routing, Ride Tuned seat mast, chain keeper, T47 BB, fender mounts, integrated frame bag mounts, flat mount disc, 142x12mm thru axle |
---|---|
Fork | Checkpoint carbon, tapered carbon steerer, fender mounts, flat mount disc, 12x100mm thru axle |
Frame fit | Gravel |
Wheel front | Bontrager Aeolus Pro 3V, OCLV Carbon, Tubeless Ready, 25mm rim width, 100x12mm thru axle |
Wheel rear | Bontrager Aeolus Pro 3V, OCLV Carbon, Tubeless Ready, 25mm rim width, Shimano 11/12-speed freehub, 142x12mm thru axle |
Skewer front | Bontrager Switch thru axle, removable lever |
Skewer rear | Bontrager Switch thru axle, removable lever |
Tire | Bontrager GR1 Team Issue, Tubeless Ready, Inner Strength casing, aramid bead, 120 tpi, 700x40c |
Tire part | Bontrager TLR sealant, 6oz |
Rim strip | Bontrager TLR |
Max tire size | 700x45c / 650x2.1" Bontrager tires |
Shifter | Shimano GRX RX815 Di2, 11 speed |
Front derailleur | Shimano GRX RX815, braze-on, down swing |
Rear derailleur | Shimano GRX RX815 |
*Crank | Size: 49, 52 Shimano GRX RX810, 48/31, 170mm length |
Size: 54, 56 Shimano GRX RX810, 48/31, 172.5mm length |
|
Size: 58, 61 Shimano GRX RX810, 48/31, 175mm length |
|
Bottom bracket | Praxis, T47 threaded, internal bearing |
Cassette | Shimano Ultegra HG800, 11-34, 11 speed |
Chain | Shimano Ultegra HG701, 11-speed |
Max chainring size | 1x: 46T, 2x: 50/37 (Shimano: 36) |
*Saddle | Size: 49, 52 Bontrager P3 Verse Elite, stainless steel rails, 155mm width |
Size: 54, 56, 58, 61 Bontrager P3 Verse Elite, stainless steel rails, 145mm width |
|
*Seatpost | Size: 49, 52, 54, 56 Bontrager carbon seatmast cap, 5mm offset, short length |
Size: 58, 61 Bontrager carbon seatmast cap, 5mm offset, tall length |
|
*Handlebar | Size: 49 Bontrager Pro IsoCore VR-SF, 38cm |
Size: 52 Bontrager Pro IsoCore VR-SF, 40cm |
|
Size: 54, 56 Bontrager Pro IsoCore VR-SF, 42cm |
|
Size: 58, 61 Bontrager Pro IsoCore VR-SF, 44cm |
|
Handlebar tape | Bontrager Supertack Perf tape |
*Stem | Size: 49 Bontrager Pro, 31.8mm, Blendr compatible, 7 degree, 70mm length |
Size: 52, 54 Bontrager Pro, 31.8mm, Blendr compatible, 7 degree, 80mm length |
|
Size: 56, 58 Bontrager Pro, 31.8mm, Blendr compatible, 7 degree, 90mm length |
|
Size: 61 Bontrager Pro, 31.8mm, Blendr compatible, 7 degree, 100mm length |
|
Brake rotor | Shimano MT800, centerlock, 160mm |
*Saddle | Size: 49, 52 Bontrager P3 Verse Elite, stainless steel rails, 155mm width |
Size: 54, 56, 58, 61 Bontrager P3 Verse Elite, stainless steel rails, 145mm width |
|
*Seatpost | Size: 49, 52, 54, 56 Bontrager carbon seatmast cap, 5mm offset, short length |
Size: 58, 61 Bontrager carbon seatmast cap, 5mm offset, tall length |
|
*Handlebar | Size: 49 Bontrager Pro IsoCore VR-SF, 38cm |
Size: 52 Bontrager Pro IsoCore VR-SF, 40cm |
|
Size: 54, 56 Bontrager Pro IsoCore VR-SF, 42cm |
|
Size: 58, 61 Bontrager Pro IsoCore VR-SF, 44cm |
|
Handlebar tape | Bontrager Supertack Perf tape |
*Stem | Size: 49 Bontrager Pro, 31.8mm, Blendr compatible, 7 degree, 70mm length |
Size: 52, 54 Bontrager Pro, 31.8mm, Blendr compatible, 7 degree, 80mm length |
|
Size: 56, 58 Bontrager Pro, 31.8mm, Blendr compatible, 7 degree, 90mm length |
|
Size: 61 Bontrager Pro, 31.8mm, Blendr compatible, 7 degree, 100mm length |
|
Brake rotor | Shimano MT800, centerlock, 160mm |

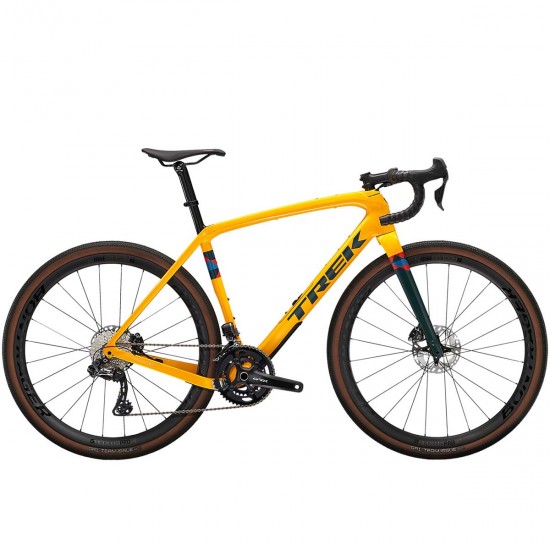

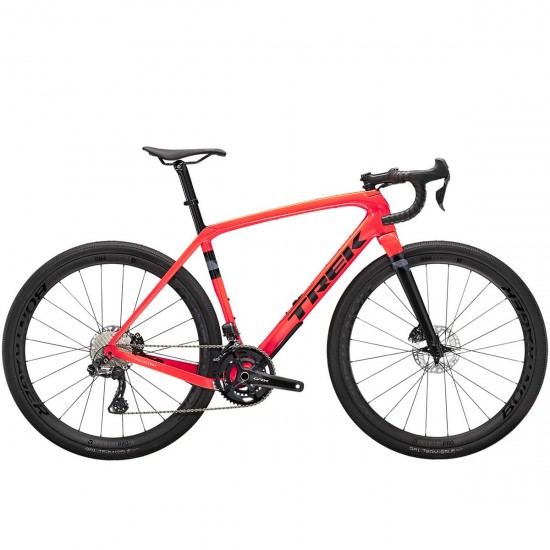

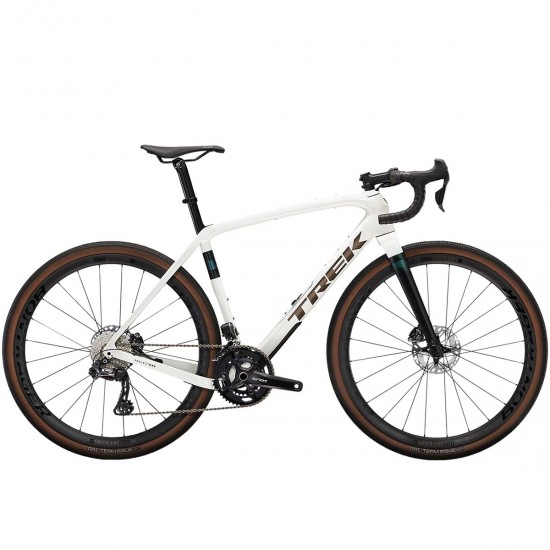

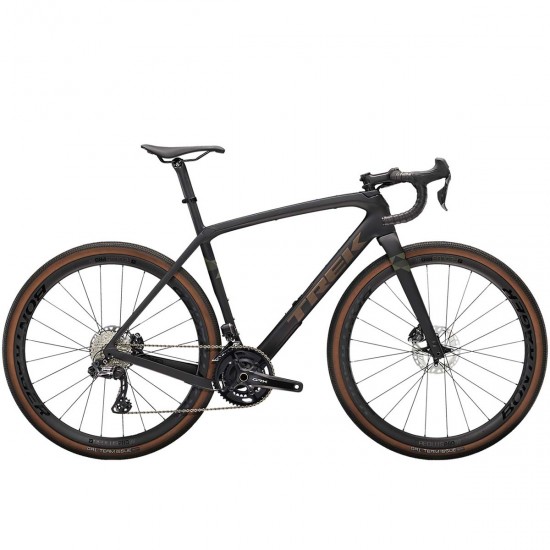

2022 Trek Checkpoint SLR 7 Road Bike
USD 4,910.00
USD 8,683.00
