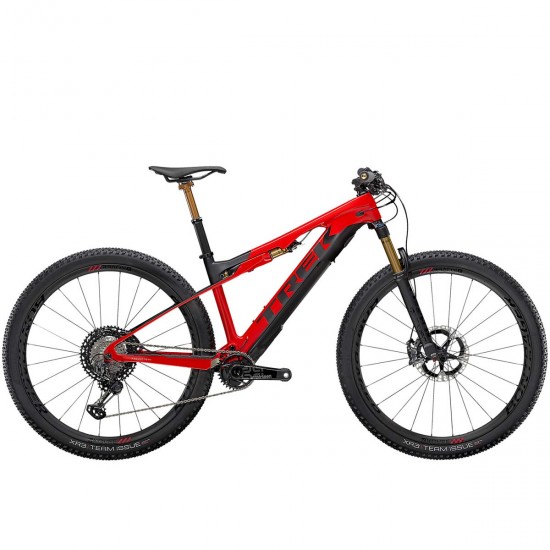

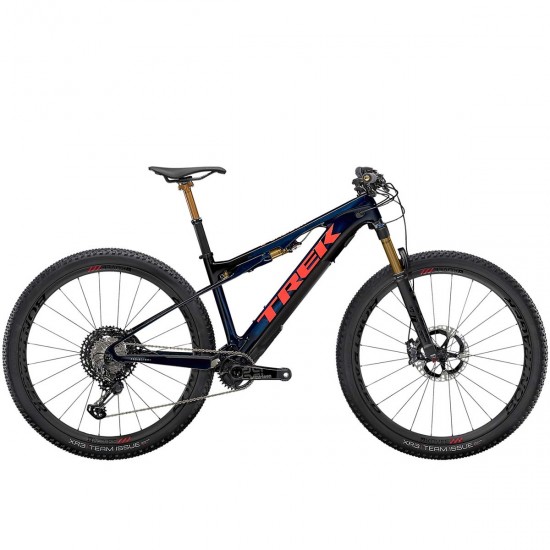

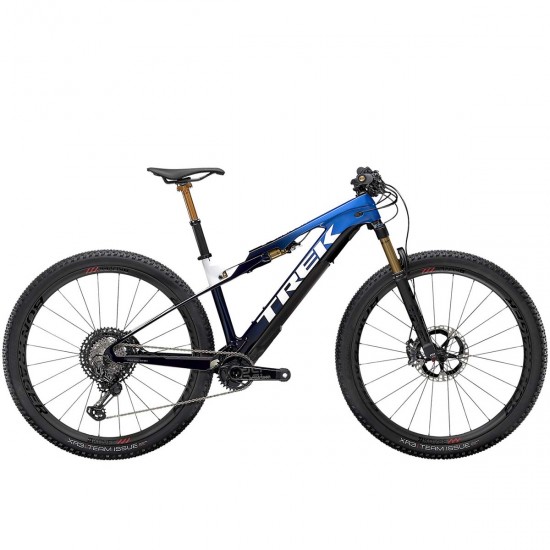

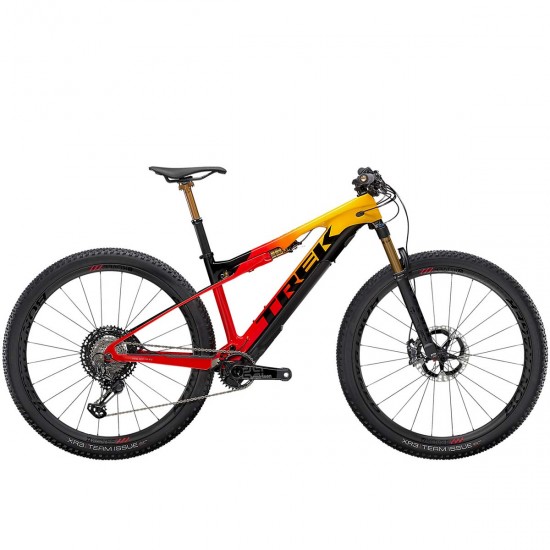

Name: 2022 Trek E-Caliber 9.9 XTR Mountain Bike
Brand: Trek
Price: 7400.00 USD
Availability: InStock

2022 Trek E-Caliber 9.9 XTR Mountain Bike

Top Brand

Description
Reviews

2022 TREK E-CALIBER 9.9 XTR

Frame	OCLV Mountain Carbon main frame & stays, IsoStrut, tapered head tube, Knock Block, Control Freak internal routing, Boost148, 60mm travel
Fork	Fox Factory 34, Float EVOL air spring, FIT4 2-position damper, dual remote lockout, tapered steerer, 44mm offset, Kashima Coat, Boost110, 15mm Kabolt axle, 130mm travel
Shock	Trek IsoStrut, Fox Factory shock, air spring, DPS 2-position remote damper, Kashima Coat, 235x32.5mm
Suspension lever	Bontrager Drop Lock remote
Max compatible fork travel	120mm (531mm axle-to-crown)
Wheel front	Bontrager Kovee XXX, OCLV Mountain Carbon, Tubeless Ready, centerlock, Boost110, 15mm thru axle
Wheel rear	Bontrager Kovee XXX, OCLV Mountain Carbon, Tubeless Ready, DT Swiss 54T engagement, centerlock, SRAM XD driver, Boost148, 12mm thru axle
Skewer rear	Bontrager Switch thru axle, removable lever
Tire	Bontrager XR3 Team Issue, Tubeless Ready, Inner Strength sidewall, aramid bead, 120tpi, 29x2.40''
Tire part	Bontrager TLR valve, 50mm
Max tire size	Frame: 29x2.40" Fork: See manufacturer
Shifter	Shimano XTR M9100, 12 speed
Rear derailleur	Shimano XTR M9100, Shadow Plus, long cage, 51T max cog
*Crank arm	Size: S , M , L Ethirteen Espec Race Carbon, 32T, 170mm length
*Crank arm	Size: XL Ethirteen Espec Race Carbon, 32T, 175mm length
Cassette	Shimano XTR M9101, 10-51, 12 speed
Chain	Shimano Dura-Ace/XTR M9100, 12 speed
Max chainring size	32T with 52mm chainline, 36T with 55mm chainline
Saddle	Bontrager P3 Verse Pro, carbon rails, 145mm width
Seatpost	Fox Transfer SL, 100mm travel, internal routing, 31.6mm
Handlebar	Bontrager Line Pro, OCLV Carbon, 35mm, 15mm rise, 750mm width
Grips	ESI Chunky
*Stem	Size: S , M Bontrager Kovee Pro, 35mm, Knock Block, Blendr compatible, 13 degree, 60mm length
*Stem	Size: L , XL Bontrager Kovee Pro, 35mm, Knock Block, Blendr compatible, 13 degree, 70mm length
Headset	Knock Block Integrated, 62-degree radius, cartridge bearing, 1-1/8'' top, 1.5'' bottom
Brake	Shimano XTR M9120 4-piston hydraulic disc
*Brake rotor	Size: S , M , L , XL Shimano MT900, 203mm, centerlock
*Brake rotor	Size: S , M , L , XL Shimano EM910, 180mm, centerlock
*E-bike system	Size: S , M , L , XL Fazua Evation battery, 250Wh
	Size: S , M , L , XL Fazua Ride Trail 50 motor
	Size: S , M , L , XL Fazua Evation charger, 90-120V
Controller	Fazua Remote bX
