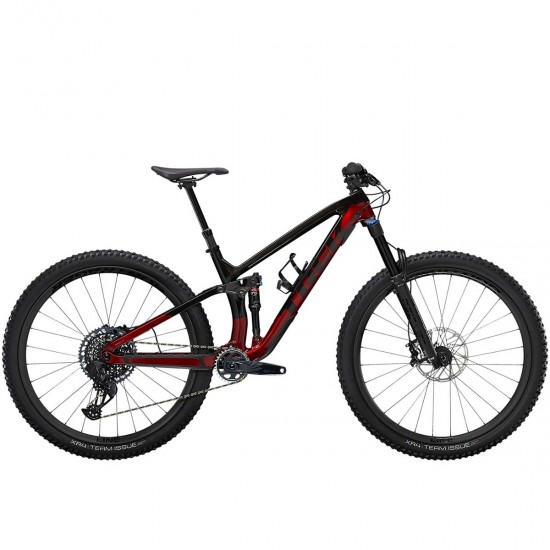

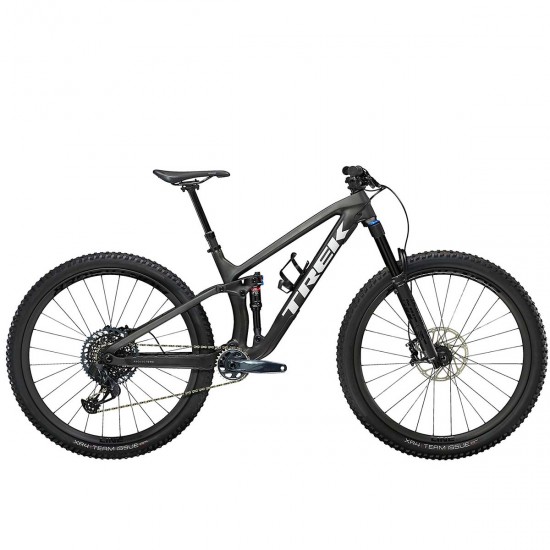

2022 Trek Fuel EX 9.8 GX AXS Mountain Bike

2022 Trek Fuel EX 9.8 GX AXS Mountain Bike
2022 Trek Fuel EX 9.8 GX AXS Mountain Bike
2022 Trek Fuel EX 9.8 GX AXS Mountain Bike
2022 Trek Fuel EX 9.8 GX AXS Mountain Bike
Top Brand
2022 Trek Fuel EX 9.8 GX AXS Mountain Bike
2022 Trek Fuel EX 9.8 GX AXS Mountain Bike
2022 Trek Fuel EX 9.8 GX AXS Mountain Bike
2022 Trek Fuel EX 9.8 GX AXS Mountain Bike

2022 TREK FUEL EX 9.8 GX AXS

Frame OCLV Mountain Carbon main frame & stays, internal storage, tapered head tube, Knock Block, Control Freak internal routing, Carbon Armor, ISCG 05, magnesium rocker link, Mino Link, ABP, Boost148, 130mm travel
Frame OCLV Mountain Carbon main frame & stays, internal storage, tapered head tube, Knock Block, Control Freak internal routing, Carbon Armor, ISCG 05, magnesium rocker link, Mino Link, ABP, Boost148, 130mm travel
Fork Fox Performance 36, Float EVOL air spring, GRIP damper, tapered steerer, 44mm offset, Boost110, 15mm Kabolt axle, 140mm travel
*Shock Size: XS , S
Fox Performance Float EVOL, RE:aktiv with Thru Shaft 3-position damper, tuned by Trek Suspension Lab, 210mm x 52.5mm
Size: S , M , ML , L , XL
Fox Performance Float EVOL, RE:aktiv with Thru Shaft 3-position damper, tuned by Trek Suspension Lab, 210mm x 55mm
Max compatible fork travel 150mm (561mm axle-to-crown)
Wheel front Bontrager Line Elite 30, OCLV Mountain Carbon, Tubeless Ready, 6-bolt, Boost110, 15mm thru axle
Wheel rear Bontrager Line Elite 30, OCLV Mountain Carbon, Tubeless Ready, Rapid Drive 108, 6-bolt, SRAM XD driver, Boost148, 12mm thru axle
Skewer rear Bontrager Switch thru axle, removable lever
*Tire Size: XS , S , M , ML , L , XL
Bontrager XR4 Team Issue, Tubeless Ready, Inner Strength sidewalls, aramid bead, 120tpi, 29.x2.40''
Size: XS , S
Bontrager XR4 Team Issue, Tubeless Ready, Inner Strength sidewalls, aramid bead, 120 tpi, 27.5x2.60''
Size: S , M , ML , L , XL
Bontrager XR4 Team Issue, Tubeless Ready, Inner Strength sidewalls, aramid bead, 120 tpi, 29x2.60''
*Tire part Size: XS , S , M , ML , L , XL
Bontrager TLR sealant, 6oz
Size: XS , S , M , ML , L , XL
Bontrager TLR valve, 50mm
Rim strip Bontrager TLR
Max tire size Frame: 29x2.60" Fork: See manufacturer
Shifter SRAM GX Eagle AXS, 12 speed
Rear derailleur SRAM GX Eagle AXS
*Crank Size: XS , S
SRAM GX Eagle, DUB, 30T alloy ring, Boost (52mm chainline), 170mm length
Size: M , ML , L , XL
SRAM GX Eagle, DUB, 30T alloy ring, Boost (52mm chainline), 175mm length
Bottom bracket SRAM DUB, 92mm, PressFit
Cassette SRAM Eagle XG-1275, 10-52, 12 speed
Chain SRAM GX Eagle, 12 speed
Max chainring size 34T
Saddle Bontrager Arvada, austenite rails, 138mm width
*Seatpost Size: XS , S
Bontrager Line Elite, 100mm travel, MaxFlow, internal routing, 31.6mm, 340mm length
Size: M , ML
Bontrager Line Elite, 150mm travel, MaxFlow, internal routing, 31.6mm, 440mm length
Size: L , XL
Bontrager Line Elite, 170mm travel, MaxFlow, internal routing, 31.6mm, 480mm length
Handlebar Bontrager Line Pro, OCLV Carbon, 35mm, 27.5mm rise, 780mm width
Grips Bontrager XR Trail Elite, nylon lock-on
*Stem Size: XS , S
Bontrager Line Pro, 35mm, Knock Block, Blendr compatible, 0 degree, 35mm length
Size: M , ML , L , XL
Bontrager Line Pro, 35mm, Knock Block, Blendr compatible, 0 degree, 45mm length
Headset Knock Block Integrated, 58-degree radius, cartridge bearing, 1-1/8'' top, 1.5'' bottom
Brake SRAM G2 RS 4-piston hydraulic disc
*Brake rotor Size: XS , S , M , ML , L , XL
SRAM CenterLine, 6-bolt, round edge, 180mm
Size: M , ML , L , XL
SRAM CenterLine, 6-bolt, round edge, 200mm
Bag Bontrager BITS Internal Frame Storage Bag

There are no reviews for this product.

Write a review

2022 Trek Fuel EX 9.8 GX AXS Mountain Bike
USD 4,260.00
USD 7,600.00
  • Stock: In Stock
  • Model: AS224251
