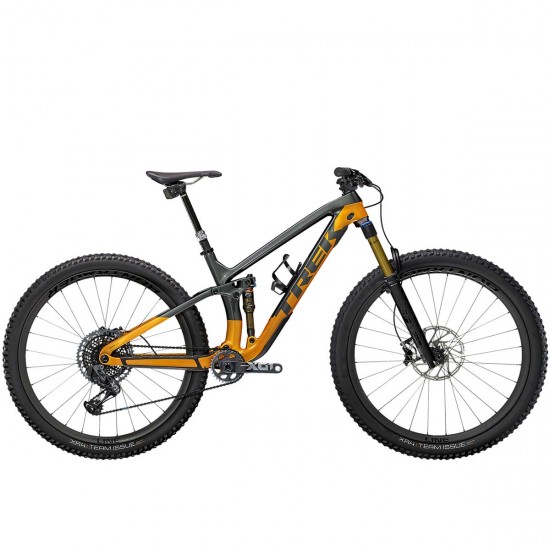

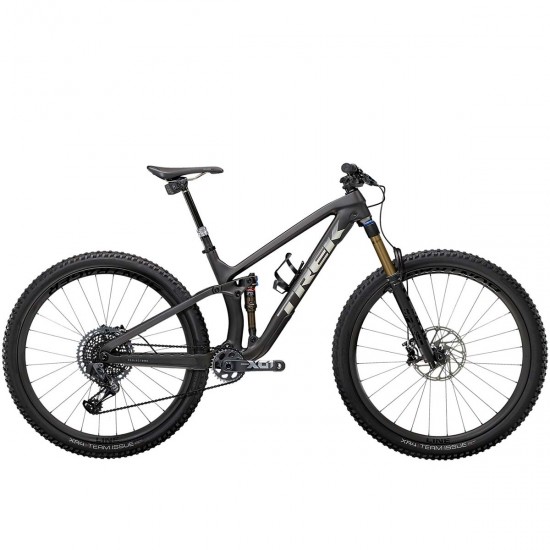

Name: 2022 Trek Fuel EX 9.9 X01 AXS Mountain Bike
Brand: Trek
Price: 6200.00 USD
Availability: InStock

2022 Trek Fuel EX 9.9 X01 AXS Mountain Bike

Top Brand

Description
Reviews

2022 TREK FUEL EX 9.9 X01 AXS

Frame	OCLV Mountain Carbon main frame & stays, internal storage, tapered head tube, Knock Block, Control Freak internal routing, Carbon Armor, ISCG 05, magnesium rocker link, Mino Link, ABP, Boost148, 130mm travel
Fork	Fox Factory 36, Float EVOL air spring, GRIP2 damper, tapered steerer, 44mm offset, Boost110, 15mm Kabolt axle, 140mm travel
*Shock	Size: XS , S Fox Factory Float EVOL, RE:aktiv with Thru Shaft 3-position damper, Kashima Coat, tuned by Trek Suspension Lab, 210x52.5mm
*Shock	Size: S , M , ML , L , XL Fox Factory Float EVOL, RE:aktiv with Thru Shaft 3-position damper, Kashima Coat, tuned by Trek Suspension Lab, 210x55mm
Max compatible fork travel	150mm (561mm axle-to-crown)
Wheel front	Bontrager Line Pro 30, OCLV Mountain Carbon, Tubeless Ready, 6-bolt, Boost110, 15mm thru axle
Wheel rear	Bontrager Line Pro 30, OCLV Mountain Carbon, Tubeless Ready, Rapid Drive 108, 6-bolt, SRAM XD driver, Boost148, 12mm thru axle
Skewer rear	Bontrager Switch thru axle, removable lever
Rim	Bontrager Line Pro 30, OCLV Mountain Carbon, Tubeless Ready, 6-bolt, Boost110, 15mm thru axle
*Tire	Size: XS , S , M , ML , L , XL Bontrager XR4 Team Issue, Tubeless Ready, Inner Strength sidewalls, aramid bead, 120tpi, 29.x2.40''
	Size: XS , S Bontrager XR4 Team Issue, Tubeless Ready, Inner Strength sidewalls, aramid bead, 120 tpi, 27.5x2.60''
	Size: S , M , ML , L , XL Bontrager XR4 Team Issue, Tubeless Ready, Inner Strength sidewalls, aramid bead, 120 tpi, 29x2.60''
Rim strip	Bontrager TLR
Max tire size	Frame: 29x2.60" Fork: See manufacturer
Shifter	SRAM Eagle AXS, wireless, 12-speed
Rear derailleur	SRAM X01 Eagle AXS
*Crank	Size: XS , S SRAM X01 Eagle carbon, DUB, 30T alloy ring, Boost (52mm chainline), 170mm length
*Crank	Size: M , ML , L , XL SRAM X01 Eagle carbon, DUB, 30T alloy ring, Boost (52mm chainline), 175mm length
Bottom bracket	SRAM DUB, 92mm, PressFit
*Cassette	Size: XS , S , M , ML , L , XL SRAM XG-1295 Eagle, 10-52, 12 speed
*Cassette	Size: XS , S , M , ML , L , XL SRAM XX1 Eagle, 12 speed
Max chainring size	34T
Saddle	Bontrager Arvada, austenite rails, 138mm width
*Seatpost	Size: XS , S RockShox Reverb AXS, 100mm travel, wireless, 31.6mm, 340mm length
	Size: M , ML RockShox Reverb AXS, 150mm travel, wireless, 31.6mm, 440mm length
	Size: L , XL RockShox Reverb AXS, 170mm travel, wireless, 31.6mm, 480mm length
Handlebar	Bontrager Line Pro, OCLV Carbon, 35mm, 27.5mm rise, 780mm width
Grips	Bontrager XR Trail Elite, alloy lock-on
*Stem	Size: XS , S Bontrager Line Pro, 35mm, Knock Block, Blendr compatible, 0 degree, 35mm length
*Stem	Size: M , ML , L , XL Bontrager Line Pro, 35mm, Knock Block, Blendr compatible, 0 degree, 45mm length
Headset	Knock Block Integrated, 58-degree radius, cartridge bearing, 1-1/8'' top, 1.5'' bottom
Brake	SRAM G2 Ultimate hydraulic disc, carbon levers
*Brake rotor	Size: XS , S , M , ML , L , XL SRAM CenterLine, 6-bolt, round edge, 180mm
*Brake rotor	Size: M , ML , L , XL SRAM CenterLine, 6-bolt, round edge, 200mm
Bag	Bontrager BITS Internal Frame Storage Bag
