Name: 2022 Trek Rail 9.7 Mountain Bike
Brand: Trek
Price: 4460.00 USD
Availability: InStock

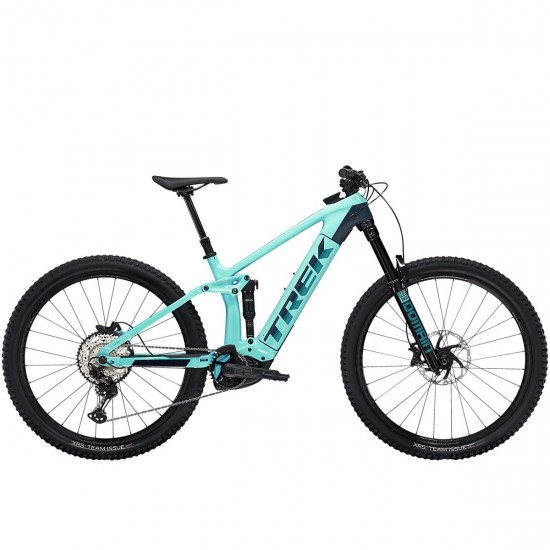

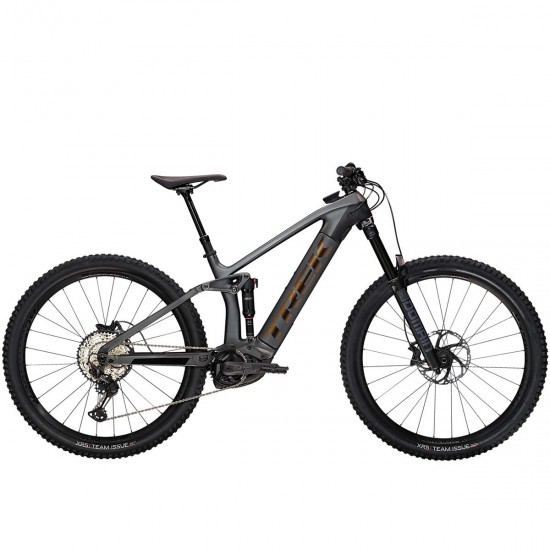

2022 Trek Rail 9.7 Mountain Bike

Top Brand

Description
Reviews

2022 TREK RAIL 9.7

Frame	OCLV Mountain Carbon main frame, Removable Integrated Battery (RIB), tapered head tube, Knock Block, Control Freak internal routing, magnesium rocker link, Motor Armor, Mino Link, ABP, Boost148, 12mm thru axle, 150mm travel
Fork	RockShox Domain RC, DebonAir spring, Motion Control damper, lockout, tapered steerer, 44mm offset, oversized crown for eMTB, Boost110, 15mm Maxle Stealth, 160mm travel
Shock	RockShox Deluxe Select+, 230x57.5mm
Max compatible fork travel	170mm (580mm axle-to-crown)
Wheel front	Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15mm thru axle
Wheel rear	Bontrager Line Comp 30, Tubeless Ready, Rapid Drive 108, 6-bolt, Boost148, 12mm thru axle
Skewer rear	Bontrager Switch thru axle, removable lever
Tire	Bontrager XR5 Team Issue, Tubeless Ready, aramid bead, 120 tpi, 29x2.50''
*Tire part	Size: S, M, L, XL Bontrager TLR sealant, 6oz
*Tire part	Size: S, M, L, XL Bontrager TLR valve, 50mm
Rim strip	Bontrager TLR
Max tire size	Frame: 29x2.60" Fork: See manufacturer
Shifter	Shimano SLX M7100, 12 speed
Rear derailleur	Shimano XT M8100, long cage
Crank arm	Ethirteen Espec Plus, 34T, 165mm length
Cassette	Shimano SLX M7100, 10-51, 12 speed
Chain	Shimano SLX M7100, 12 speed
Pedal	VP-536 nylon platform
Max chainring size	34T
Saddle	Bontrager Arvada, steel rails, 138mm width
*Seatpost	Size: S Bontrager Line Dropper, 100mm travel, internal routing, 31.6mm, 345mm length
*Seatpost	Size: M, L, XL Bontrager Line Dropper, 150mm travel, internal routing, 31.6mm, 440mm length
Handlebar	Bontrager Comp, alloy, 31.8mm, 15mm rise, 780mm width
Grips	Bontrager XR Trail Comp, nylon lock-on
Stem	Bontrager Rhythm Comp, 31.8mm, Knock Block, 0 degree, 50mm length
Headset	Knock Block Integrated, 58-degree radius, cartridge bearing, 1-1/8'' top, 1.5'' bottom
Brake	Shimano 4-piston hydraulic disc, M6100 lever, M6120 caliper
Brake rotor	Shimano RT76, 6-bolt, 203mm
Battery	Bosch PowerTube 625
Charger	Bosch standard 4A (100-240V) charger
Controller	Bosch Kiox with Anti-theft solution
Motor	Bosch Performance CX, magnesium motor body, 250 watt, 85 Nm, 20mph or 32km/h max assist
