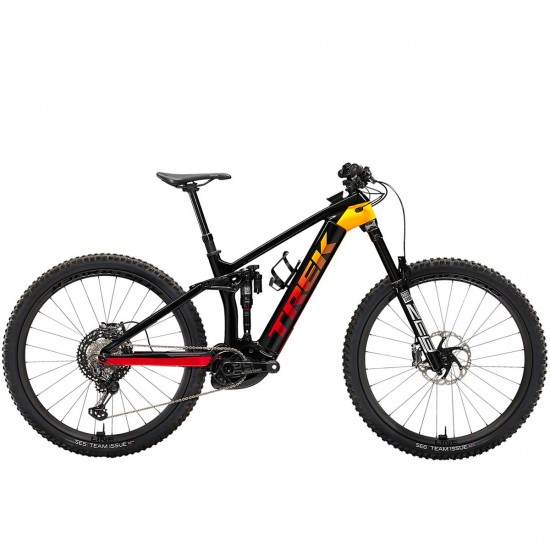

Name: 2022 Trek Rail 9.9 XTR Mountain Bike
Brand: Trek
Price: 7400.00 USD
Availability: InStock

2022 Trek Rail 9.9 XTR Mountain Bike

Top Brand

Description
Reviews

2022 TREK RAIL 9.9 XTR

Frame	NEW OCLV Mountain Carbon main frame, 1.8'' lower head tube, Removable Integrated Battery (RIB), Knock Block 2.0, guided internal routing, 34.9mm seat tube, magnesium rocker link, Motor Armor, Mino Link, ABP, Boost148, 12mm thru axle, 150mm travel
Fork	RockShox ZEB Ultimate, AirWiz, DebonAir spring, Charger 2.1 RC2 damper, e-MTB optimzed crown, tapered steerer, 44mm offset, Boost110, 15mm Maxle Stealth, 160mm travel
Shock	RockShox Super Deluxe Thru Shaft, AirWiz, 230x57.5mm
Max compatible fork travel	170mm (580mm axle-to-crown)
Wheel front	Bontrager Line Pro 30, OCLV Mountain Carbon, Tubeless Ready, 6-bolt, Boost110, 15mm thru axle
Wheel rear	Bontrager Line Pro 30, OCLV Mountain Carbon, Tubeless Ready, Rapid Drive 108, 6-bolt, Shimano MicroSpline freehub, Boost148, 12mm thru axle
Skewer rear	Bontrager Switch thru axle, removable lever
*Tire	Size: M, L, XL Bontrager SE5 Team Issue, Tubeless Ready, Core Strength sidewalls, aramid bead, 120 tpi, 29x2.50''
*Tire	Size: M, L, XL Bontrager SE6 Team Issue, Tubeless Ready, Core Strength sidewalls, aramid bead, 120 tpi, 29x2.50''
*Tire part	Size: M, L, XL Bontrager TLR sealant, 6oz
*Tire part	Size: M, L, XL Quarq TyreWiz tire pressure monitors
Rim strip	Bontrager TLR
Max tire size	Frame: 29x2.60" Fork: See manufacturer
Shifter	Shimano XTR M9100, 12 speed
Rear derailleur	Shimano XTR M9100, Shadow Plus, long cage, 51T max cog
Crank arm	Ethirteen Espec Race carbon, 34T, 165mm length
Cassette	Shimano XTR M9101, 10-51, 12 speed
Chain	Shimano Dura-Ace/XTR M9100, 12 speed
Pedal	VP-536 nylon platform
Max chainring size	34T
Saddle	Bontrager Arvada, austenite rails, 138mm width
*Seatpost	Size: M Bontrager Line Elite Dropper, 150mm travel, MaxFlow, internal routing, 34.9mm, 440mm length
	Size: L Bontrager Line Elite Dropper, 170mm travel, MaxFlow, internal routing, 34.9mm, 485mm length
	Size: XL Bontrager Line Elite Dropper, 200mm travel, MaxFlow, internal routing, 34.9mm, 550mm length
Handlebar	Bontrager Line Pro, OCLV Carbon, 35mm, 27.5mm rise, 780mm width
Grips	Bontrager XR Trail Elite, nylon lock-on
Stem	Bontrager Line Pro, 35mm, Knock Block, Blendr compatible, 0 degree, 45mm length
Headset	Knock Block Integrated, cartridge bearing, 1-1/8'' top, 1.8'' bottom
Brake	Shimano XTR M9120 4-piston hydraulic disc
Brake rotor	Shimano RT86, 203mm, 6-bolt
Battery	Bosch PowerTube 750Wh, smart system
Charger	Bosch standard 4A, 230V, smart system
Controller	Bosch Kiox 300
Motor	Bosch Performance Line CX
