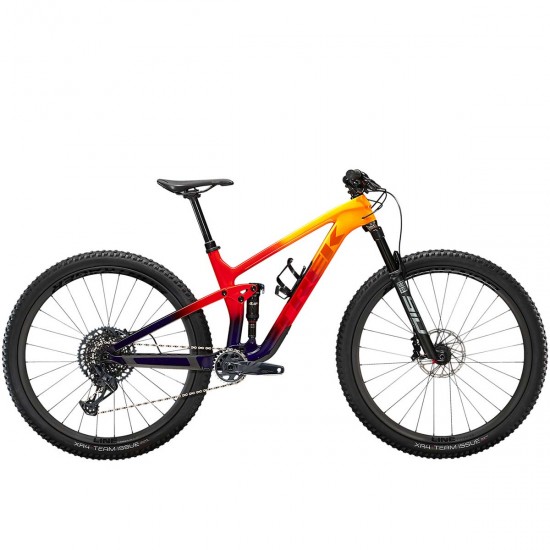

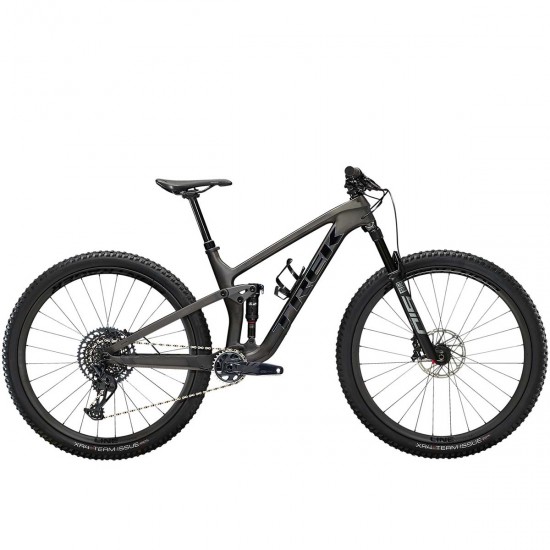

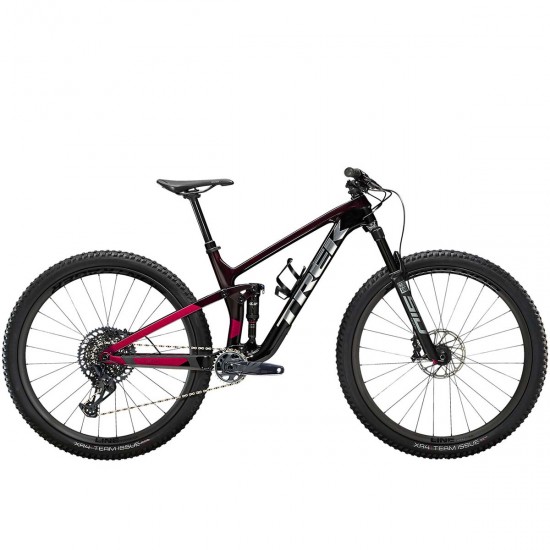

Name: 2022 Trek Top Fuel 9.8 GX Mountain Bike
Brand: Trek
Price: 3750.00 USD
Availability: InStock

2022 Trek Top Fuel 9.8 GX Mountain Bike

Top Brand

Description
Reviews

2022 TREK TOP FUEL 9.8 GX

Frame	OCLV Mountain Carbon, internal storage, tapered head tube, Knock Block 2.0, internal guided routing, downtube guard, magnesium rocker link, Mino Link, ABP, Boost148, 120mm travel
Fork	RockShox SID Select+, DebonAir spring, Charger 2 RL damper, tapered steerer, 44mm offset, Boost110, 15mm Maxle Stealth, 120mm travel
Shock	RockShox Deluxe Ulitmate RCT, 185mm x 50mm
Max compatible fork travel	130mm (541mm axle-to-crown)
Wheel front	Bontrager Line Elite 30, OCLV Mountain Carbon, Tubeless Ready, 6-bolt, Boost110, 15mm thru axle
Wheel rear	Bontrager Line Elite 30, OCLV Mountain Carbon, Tubeless Ready, Rapid Drive 108, 6-bolt, SRAM XD driver, Boost148, 12mm thru axle
Skewer rear	Bontrager Switch thru axle, removable lever
Tire	Bontrager XR4 Team Issue, Tubeless Ready, Inner Strength sidewalls, aramid bead, 120tpi, 29.x2.40''
*Tire part	Size: S, M, M/L, L, XL Bontrager TLR sealant, 6oz
*Tire part	Size: S, M, M/L, L, XL Bontrager TLR valve, 50mm
Rim strip	Bontrager TLR
Max tire size	Frame: 29x2.5" Fork: see manufacturer
Shifter	SRAM GX Eagle, 12 speed
Rear derailleur	SRAM GX Eagle
*Crank	Size: S, M, M/L, L SRAM GX Eagle, DUB MTB Wide, 30T, 55mm chainline, 170 length
*Crank	Size: XL SRAM GX Eagle, DUB MTB Wide, 30T, 55mm chainline, 175 length
Bottom bracket	SRAM DUB MTB Wide, 73mm, BSA threaded
Cassette	SRAM Eagle XG-1275, 10-52, 12 speed
Chain	SRAM GX Eagle, 12 speed
Max chainring size	Max: 36T (oval - 34T) Min: 28T
Saddle	Bontrager Arvada, austenite rails, 138mm width
*Seatpost	Size: S Bontrager Line Elite Dropper, 100mm travel, MaxFlow, internal routing, 34.9mm, 345mm length
	Size: M, M/L Bontrager Line Elite Dropper, 150mm travel, MaxFlow, internal routing, 34.9mm, 440mm length
	Size: L Bontrager Line Elite Dropper, 170mm travel, MaxFlow, internal routing, 34.9mm, 485mm length
	Size: XL Bontrager Line Elite Dropper, 200mm travel, MaxFlow, internal routing, 34.9mm, 550mm length
*Handlebar	Size: S Bontrager Line Pro, OCLV Carbon, 35mm, 15mm rise, 750mm width
*Handlebar	Size: M, M/L, L, XL Bontrager Line Pro, OCLV Carbon, 35mm, 27.5mm rise, 780mm width
Grips	Bontrager XR Trail Elite, nylon lock-on
Stem	Bontrager Line Pro, 35mm, Knock Block, Blendr compatible, 0 degree, 45mm length
Headset	Knock Block 2.0 Integrated, 72-degree radius (includes infinite-radius chip), sealed cartridge bearing, 1-1/8'' top, 1.5'' bottom
Brake	SRAM G2 RS 4-piston hydraulic disc
*Brake rotor	Size: S, M, M/L, L, XL SRAM CenterLine, 6-bolt, round-edge, 160mm
*Brake rotor	Size: S, M, M/L, L, XL SRAM CenterLine, 6-bolt, round edge, 180mm
