Name: 2022 Trek Top Fuel 9.9 XTR Mountain Bike
Brand: Trek
Price: 5640.00 USD
Availability: InStock

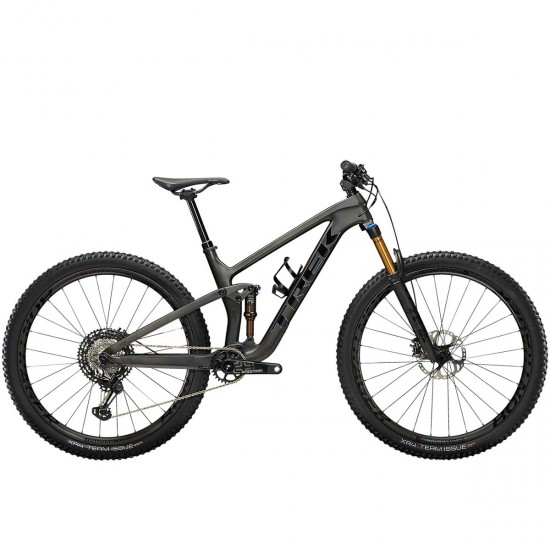

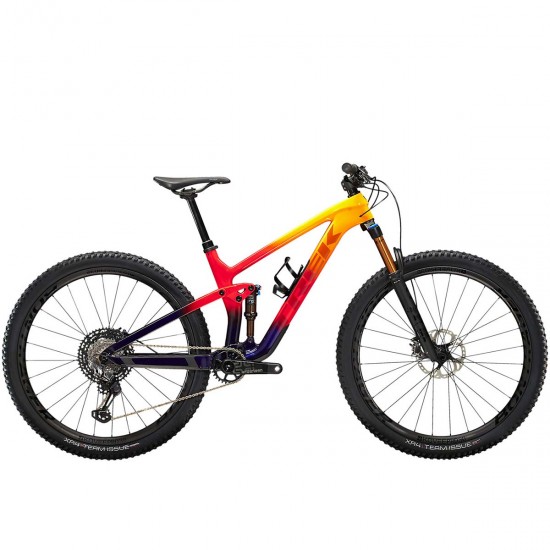

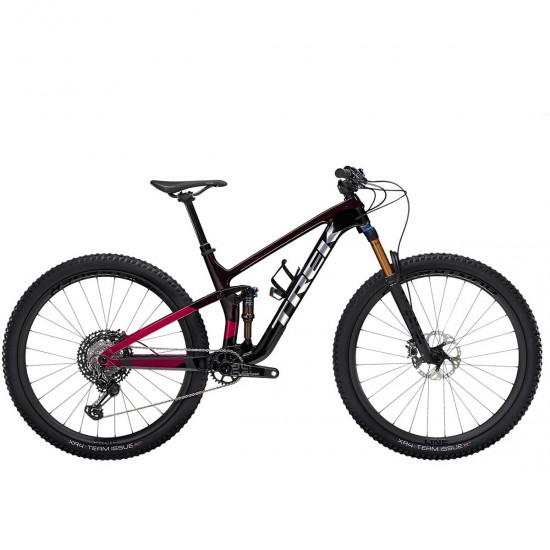

2022 Trek Top Fuel 9.9 XTR Mountain Bike

Top Brand

Description
Reviews

2022 TREK TOP FUEL 9.9 XTR

Frame	OCLV Mountain Carbon, internal storage, tapered head tube, Knock Block 2.0, internal guided routing, downtube guard, magnesium rocker link, Mino Link, ABP, Boost148, 120mm travel
Fork	Fox Factory 34, Float EVOL air spring, GRIP2 damper, tapered steerer, 44mm offset, Kashima Coat, Boost110, 15mm Kabolt axle, 130mm travel
Shock	Fox Factory Float DPS, 3-position damper, open-mode adjustment, Kashima Coat, 185x50mm
Max compatible fork travel	130mm (541mm axle-to-crown)
Wheel front	Bontrager Line Pro 30, OCLV Mountain Carbon, Tubeless Ready, 6-bolt, Boost110, 15mm thru axle
Wheel rear	Bontrager Line Pro 30, OCLV Mountain Carbon, Tubeless Ready, Rapid Drive 108, 6-bolt, Shimano MicroSpline freehub, Boost148, 12mm thru axle
Skewer rear	Bontrager Switch thru axle, removable lever
Tire	Bontrager XR4 Team Issue, Tubeless Ready, Inner Strength sidewalls, aramid bead, 120tpi, 29.x2.40''
*Tire part	Size: S, M, M/L, L, XL Bontrager TLR sealant, 6oz
*Tire part	Size: S, M, M/L, L, XL Bontrager TLR valve, 50mm
Rim strip	Bontrager TLR
Max tire size	Frame: 29x2.5" Fork: see manufacturer
Shifter	Shimano XTR M9100, 12 speed
Rear derailleur	Shimano XTR M9100, Shadow Plus, long cage, 51T max cog
*Crank	Size: S, M, M/L, L E*thirteen TRS Race Carbon, 30T, 55mm chainline, 170mm length
*Crank	Size: XL E*thirteen TRS Race Carbon, 30T, 55mm chainline, 175mm length
Bottom bracket	E*thirteen BB20-P, BSA threaded, 73mm width
Cassette	Shimano XTR M9101, 10-51, 12 speed
Chain	Shimano Dura-Ace/XTR M9100, 12 speed
Max chainring size	Max: 36T (oval - 34T) Min: 28T
Saddle	Bontrager Arvada Pro, carbon rails, 138mm width
*Seatpost	Size: S Bontrager Line Elite Dropper, 100mm travel, MaxFlow, internal routing, 34.9mm, 345mm length
	Size: M, M/L Bontrager Line Elite Dropper, 150mm travel, MaxFlow, internal routing, 34.9mm, 440mm length
	Size: L Bontrager Line Elite Dropper, 170mm travel, MaxFlow, internal routing, 34.9mm, 485mm length
	Size: XL Bontrager Line Elite Dropper, 200mm travel, MaxFlow, internal routing, 34.9mm, 550mm length
*Integrated Bar Stem	Size: S Bontrager RSL Integrated handlebar/stem, OCLV Carbon, 27.5mm handlebar rise, 820mm width, 0 degree stem rise, 35mm stem length
*Integrated Bar Stem	Size: M, M/L, L, XL Bontrager RSL Integrated handlebar/stem, OCLV Carbon, 27.5mm handlebar rise, 820mm width, 0 degree stem rise, 45mm stem length
Grips	Bontrager XR Trail Elite, nylon lock-on
Headset	Knock Block 2.0 Integrated, 72-degree radius (includes infinite-radius chip), sealed cartridge bearing, 1-1/8'' top, 1.5'' bottom
Brake	Shimano XTR M9100 hydraulic disc
*Brake rotor	Size: S, M, M/L, L, XL Shimano RT86, 160mm, 6-bolt
*Brake rotor	Size: S, M, M/L, L, XL Shimano RT86, 180mm, 6-bolt
