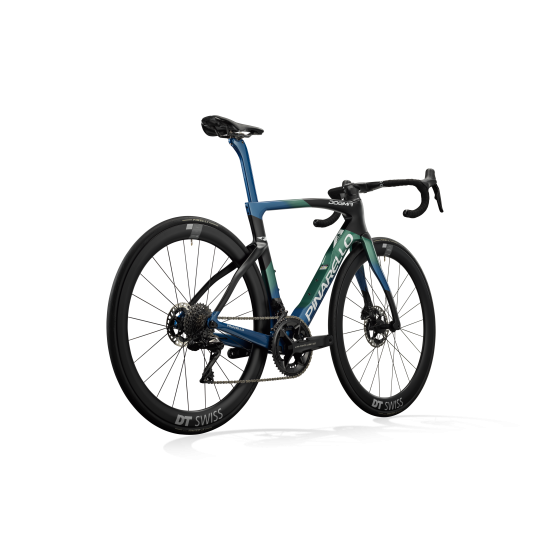

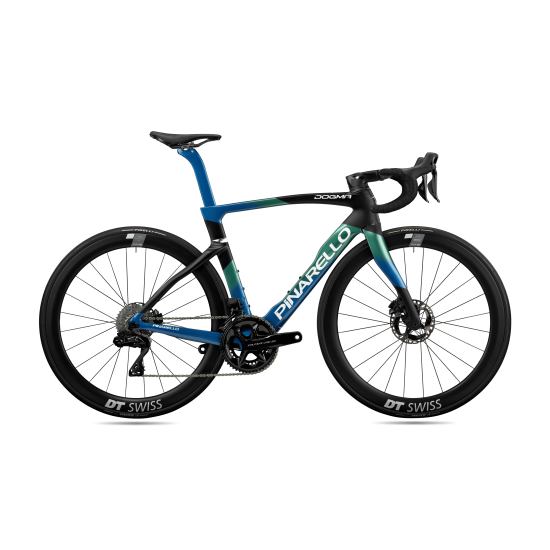

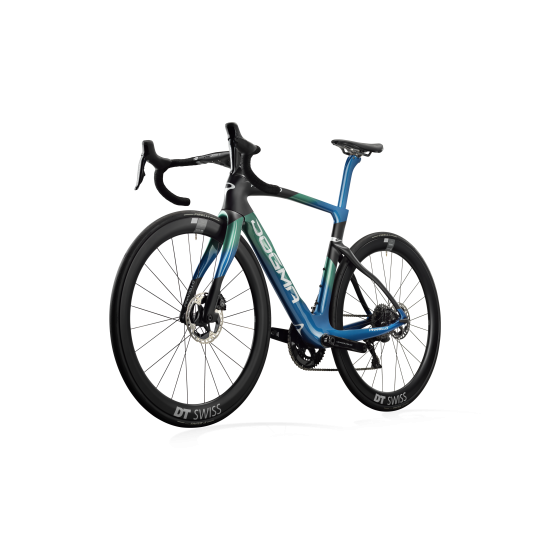

2024 PINARELLO DURA ACE DI2 - NEBULA GREEN BLUE ROAD BIKE
THE ART OF BALANCE
Seven of the last 11 Tours de France have been conquered on a DOGMA, and the latest generation is now ready to continue that legacy of success. This is the culmination of all of our skill and experience, a masterpiece of engineering that offers advancements in handling, comfort, and aerodynamics all wrapped in a package that can climb, descend, and sprint with equal flair. Whatever the road throws at you, the DOGMA F is always the right bike.
CARBON T1100 1K
High tensile and high modulus carbon fiber with patented Nanoalloy Technology for extreme performances.
TiCR
The state-of-the-art internal cable routing across the whole bike industry. The system allows both to install wireless or electro-mechanical group sets and completely hides cables within bar/stem or integrated handlebar for improved aero performances and cable protection.
FLATBACK PROFILE
Truncated aerofoil for aerodynamic advantage, compliant to 3:1 UCI rule. Excellent aero performance and low lateral wind resistance
FRAME | TorayCa T1100 1K Dream Carbon with Nanoalloy technology, TiCR™ cable routing, Italian BB, UCI approved |
---|---|
FORK | F Onda Fork with ForkFlap™, 1.5' upper and lower steerer, Ultra Light Headset bearings |
CRANKSET AND CHAINRINGS | Shimano Dura Ace FC-R9200, HollowTech 2, 12s |
FRONT DERAILLEUR | Shimano Dura Ace Di2 FD-9200 11S |
REAR DERAILLEUR | Shimano Dura Ace Di2 RD-R9200 12s |
CASSETTE | Shimano Dura Ace CS-R9200 12S |
CHAIN | Shimano Dura Ace CN-HG 12S |
BOTTOM BRACKET | Shimano Dura Ace SM-BB9200 |
FRONT BRAKE DISC | Dura Ace BR-R9200, 2 pistons caliper, 160mm rotor |
REAR BRAKE DISC | Dura Ace BR-R9200, 2 pistons caliper, 140mm rotor |
FRONT BRAKE RIM | Shimano Dura Ace R9100 Direct Mount Caliper |
INTEGRATED HANDLEBAR | MOST Talon Ultra Light |
BAR TAPE | most bar tape |
SADDLE | Most Lynx Ultrafast Superflow L Carbon Large 145mm |
SEATPOST | Pinarello Aero seatpost with 3D printed titanium top seatclamp and bolts |
SEAT CLAMP | Seatclamp Twinforce, titanium bolts |
TYRES DISC | Pirelli P Zero Race 26mm - Black, 127 tpi aramid breaker. Max tyre size 28mm (width as measured) |
WHEELSET DISC | PRINCETON PEAK 4550 DB* |
AXLES DISC | Ultra Light Custom Axle 12x100 & 12x142, tool free removal |
BOTTLES AND BOTTLE CAGES | Bottlecage Trap PACF ø 74mm, Fly Bottle Pinarello Bottle 550ml Black |
