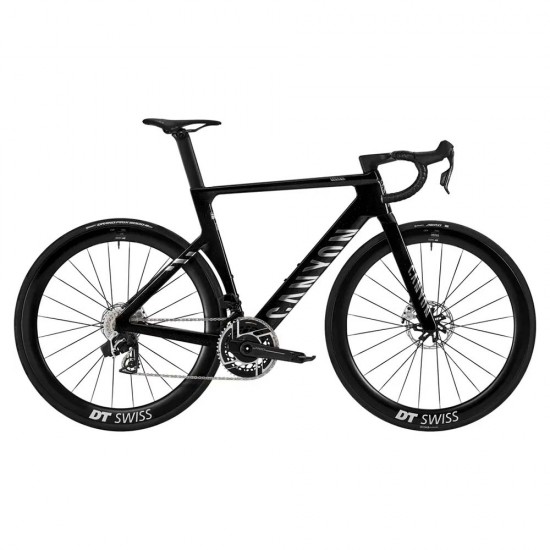

2025 CANYON AEROAD CFR AXS SPECIFICATION

Frame	Canyon Aeroad CFR, Fourth-generation Aeroad frame uniting peloton-leading aerodynamics with an improved carbon layup for added robustness., Axle dimension: 12x142 mm, Front derailleur hanger: removable, Tyre clearance: 32 mm, Material: Carbon (CFR), Weight: 2.19 lbs BB Standard: BB86/BB92, 86mm, Press Fit Tire Clearance: 32c Color: Sparkle Stealth
Fork	Canyon FK0137 CF Disc, Aero fork shaped using advanced CFD technology. With hermetically sealed headset and titanium bearing seat for next-level durability and smoothness., Axle dimension: 12x100 mm, Fork steer tube diameter: 1 1/8", Tyre clearance: 32 mm, Material: Carbon (CF), Weight: 0.87 lbs
Bottom Bracket	Ceramicspeed Coated BB (SRAM), Bottom bracket standard: PF 86,5, Weight: 0.17 lbs
Saddle	Selle Italia SLR Boost Superflow Kit Carbonio, Width: 130 mm, Gender: Unisex, Max. Rider Weight: 100 kg, Weight: 0.28 lbs
Seatpost	Canyon SP0077, Easy-adjust carbon seatpost. With a new clamp allowing independent setback and tilt adjustment., Setback: -10 mm, Material: Carbon (CF), Weight: 0.35 lbs Type: Rigid
Pedals	None included
Rims	DT Swiss ARC 1100 Dicut db \| DT Swiss ARC 1100 Dicut db, Axle dimension: 12x100 mm, Rotor mount: Center Lock, Rim height: 50 mm, Inner width: 20 mm, Rim material: Carbon, Weight: 1.56 lbs \| DT Swiss ARC 1100, Axle dimension: 12x142 mm, Rotor mount: Center Lock, Rim height: 50 mm, Inner width: 20 mm, Rim material: Carbon, Weight: 1.88 lbs
Tires	Continental Aero 111, Width: 26 mm, Weight: 0.54 lbs \| Continental Grand Prix 5000 S TR, 28mm, Width: 28 mm, Weight: 0.65 lbs
Disc Rotors	SRAM Paceline X, Size: 160 mm, Weight: 0.30 lbs \| SRAM Paceline X, Size: 140 mm, Weight: 0.24 lbs
Rear Derailleur	SRAM RED AXS RD 12s, Weight: 0.58 lbs
Front Derailleur	SRAM RED AXS FD, Weight: 0.32 lbs
Crank	SRAM RED AXS Powermeter crankset, Number of chainrings: 2
Power Meter	SRAM RED AXS Powermeter crankset
Shifters	SRAM RED AXS HRD, Number of pistons: 2, Weight: 0.80 lbs \| SRAM RED eTap AXS HRD, Number of pistons: 2, Weight: 0.80 lbs
Cassette	SRAM RED XG-1290, Number of sprockets: 12, Range: 10-28
Chain	SRAM RED E1 12s/13s
Brakes	SRAM RED AXS HRD, Number of pistons: 2, Weight: 0.80 lbs \| SRAM RED eTap AXS HRD, Number of pistons: 2, Weight: 0.80 lbs Type: SRAM RED Hydraulic Disc
Brake Levers	SRAM RED AXS HRD, Number of pistons: 2, Weight: 0.80 lbs \| SRAM RED eTap AXS HRD, Number of pistons: 2, Weight: 0.80 lbs
