2025 CANYON SPEEDMAX CFR DI2 SPECIFICATION

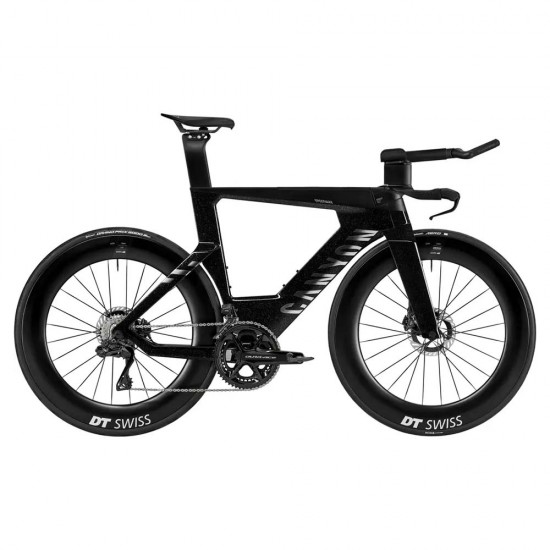

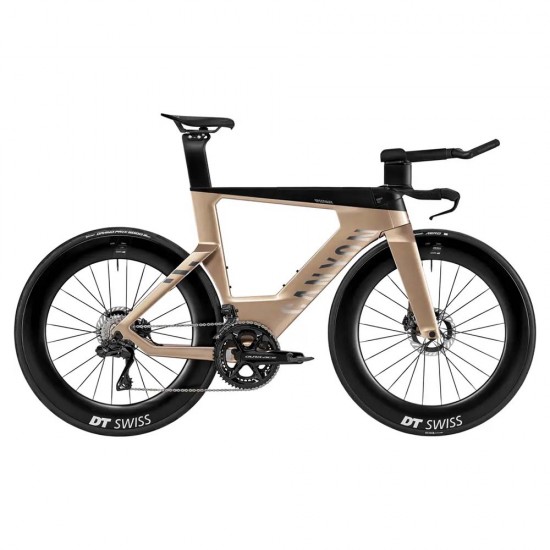

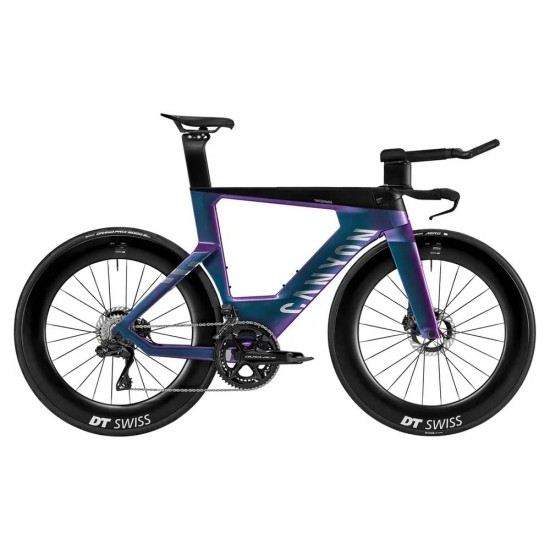

Frame	Canyon Speedmax CFR Disc, Canyon Factory Racing triathlon carbon frame, featuring ultra-rare Toray M40X carbon fibres. Shaped by extensive computational fluid dynamics analysis with our aero partners Swiss Side, validated in the wind tunnel. Fully internal routing, integrated hydration system, hidden toolbox, easily accessible bento box, 12x142 mm through axle, flat-mount disc standard., Axle dimension: 12x142 mm, Tyre clearance: 30 mm, Material: Carbon (CFR), Weight: 1,600 g BB Standard: BB86/BB92, 86mm, Press Fit Tire Clearance: 30c Colors: Sparkle Stealth; Champagne Supernova; Chromatic Marvel
Fork	Canyon FK0080, Radical deep profile design, covered brake calipers for enhanced aerodynamics, internal cable routing, 12x100 mm through axle, flat-mount disc standard. CT scanner tested and approved., Axle dimension: 12x100 mm, Fork steer tube diameter: 1 1/8", Tyre clearance: 30 mm, Material: Carbon (CF), Weight: 660 g
Bottom Bracket	Shimano Pressfit BB92, Bottom bracket standard: PF 86,5, Weight: 55 g
Handlebar	Canyon GP0226 Aerobar, Mono aero bar developed with aero experts Swiss Side to deliver optimal aero performance.
Saddle	Fizik Transiro, Gender: Unisex, Weight: 187 g
Seatpost	Canyon SP0049 Aero Seatpost, Speedmax triathlon seatpost, specifically designed for pure aero performance, non-UCI-compliant profile., Material: Carbon (CF), Weight: 154 g Type: Rigid
Pedals	None included
Rims	DT Swiss ARC 1100 Dicut, Axle dimension: 12x100 mm, Rotor mount: Center Lock, Rim height: 80 mm, Inner width: 20 mm, Rim material: Carbon, Weight: 828 g \| DT Swiss ARC 1100 Dicut, Axle dimension: 12x142 mm, Rotor mount: Center Lock, Rim height: 80 mm, Rim material: Carbon, Weight: 942 g
Tires	Continental Grand Prix 5000 S TR, 28mm, Width: 28 mm, Weight: 294 g \| Continental Aero 111, Width: 26 mm, Weight: 246 g
Disc Rotors	Shimano Dura-Ace RT-CL900, Size: 160 mm, Weight: 113 g
Rear Derailleur	Shimano Dura-Ace Di2 RD-R9250, 12-speed, Cage length: long, Weight: 217 g
Front Derailleur	Shimano Dura-Ace Di2 FD-R9250, Weight: 96 g
Crank	Shimano Dura-Ace R9200, Number of chainrings: 2
Shifters	Shimano Dura-Ace Di2 R9160 Remote TT, Weight: 19 g
Cassette	Shimano Dura-Ace R9200, 12-speed, 11-30, Number of sprockets: 12, Range: 11-30
Chain	Shimano CN-M9100 12s
Brakes	Shimano Flat Mount Adapter +20mm Type: Shimano Hydraulic Disc
Brake Levers	Shimano Dura-Ace Di2 ST-R9180, Number of pistons: 2, Weight: 263 g \| Shimano Dura-Ace Di2 ST-R9180, Number of pistons: 2, Weight: 264 g
