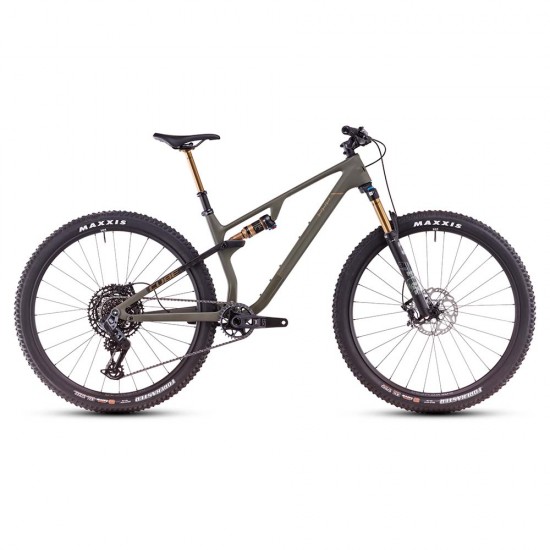

2025 CUBE AMS ONE11 C:68X TM 29 SPECIFICATION

Frame	C:68X® Monocoque Advanced Twin Mold Technology, FSP 4-Link, Boost 148, UDH™
Frame material	Carbon
Wheel size	29"
Speeds	1 x 12
Colour	dustyolive´n´gold
Fork	Fox 34 SC Float Factory FIT4, Open(Adjustable)/Medium/Firm Mode, Tapered, 15x110mm, 120mm, Kashima Coated
Rear Shock	Fox Float DPS Factory, 190x42.5mm, Open(Adjustable)/Medium/Firm Mode, Kashima Coated
Travel	120mm / 110mm
Brakes	Shimano XT BR-M8120/BR-M8100, Hydr. Disc Brake
Brake discs	180/180 mm
Headset	ACROS Integrated, Top 1 1/8", Bottom 1 1/2", Fiber Inserts for Angle Adjustment
Stem	Newmen Evolution SL 318.4, 31.8mm
Handlebar	Newmen Evolution SL 318.25, 760mm
Bar grips	ACID Disrupt, Soft Compound
Saddle	ACID Nuance Lite
Seatpost	Fox Transfer Factory 30.9mm, Kashima Coated
Seat clamp	CUBE Screwlock, 34.9mm
Crankset	Sram X0 Eagle™ Transmission, 32T
Bottom bracket	Sram DUB MTB Wide, 92mm Pressfit
Rear derailleur	Sram GX Eagle AXS™ Transmission, 12-Speed
Gear shifters	Sram AXS™ Pod Controller
Cassette	Sram XS-1270, 10-52T
Chain	Sram GX Eagle™ Transmission
Tyres	Maxxis Forekaster, MaxxTerra/EXO, Tubeless Ready, 2.4 WT
Wheelset	Newmen Beskar 30 light/base, 28/28 Spokes, 15x110mm/12x148mm, Tubeless Ready
Frame weight	1600 g
Bearing dimension	Front: 26x8mm, Rear: 30x8mm
Pedals	not included
Maximum total weight allowed	115 kg (body weight + bike + equipment)
Weight	starting from 12,4 kg
