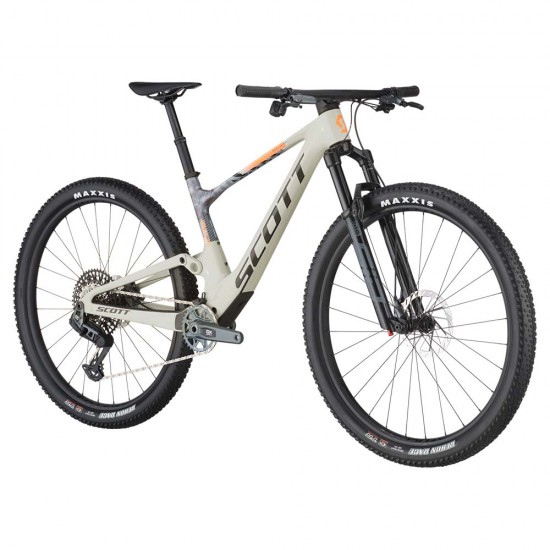

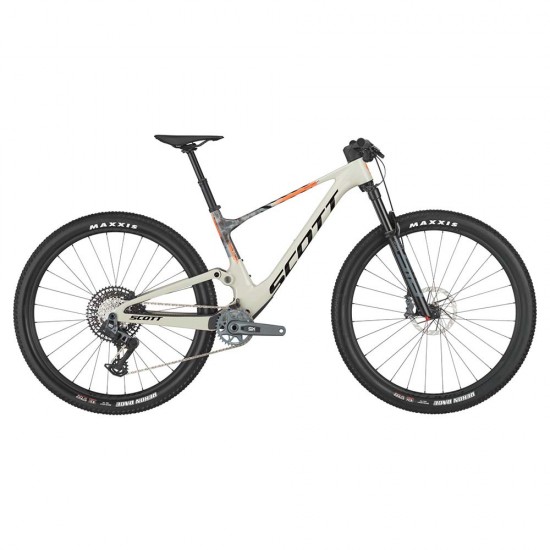

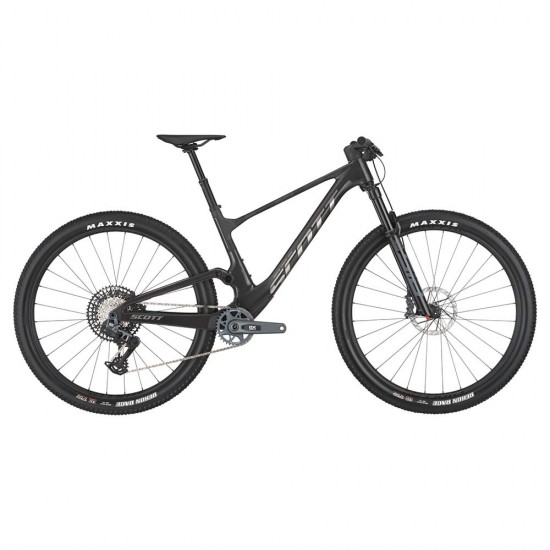

2025 SCOTT SPARK RC TEAM ISSUE BIKE SPECIFICATION

Frame	Spark RC Carbon HMF Integrated Suspension Technology Flex Pivot / Adjustable head angle Syncros Cable Integration System BB92 / UDH Interface / 12x148mm with 55mm Chainline
Fork	RockShox SID Select 3P Air Charger RL 3-Mode Damper 15x110mm Maxle Stealth / 44mm offset / Tapered steerer Lockout / Reb. Adj. / 120mm travel
Rear Shock	RockShox NUDE 5 RL3 Trunnion SCOTT custom w. travel / geo adj. 3 modes: Lockout-Traction Control-Descend Debon Air / Reb. Adj. / Travel 120-80-Lockout / T165X45mm
Remote System	SCOTT TwinLoc Technology 3 Suspension modes
Rear Derailleur	SRAM GX Eagle AXS Transmission 12 Speed Wireless Electronic Shift System
Shifters	SRAM AXS Pod Controller
Crankset	SRAM GX Eagle Transmission DUB / 55mm CL / 34T
Chainguide	SCOTT custom
BB-Set	SRAM DUB PF 92 MTB Wide / shell 41x92mm
Chain	SRAM CN GX Eagle Transmission
Cassette	SRAM GX Eagle XS 1275 Transmission 10-52
Brakes	SRAM Level Bronze Stealth 4-Piston Disc
Rotor	SRAM HS2 CL Rotors 180/F and 160/R
Handlebar	Syncros Fraser iC SL XC Carbon -12° rise / back sweep 8° / 740mm Syncros Performance XC lock-on grips
Seatpost	Syncros Duncan Dropper Post 1.5XC / 31.6mm all sizes 100mm
Seat	Syncros Belcarra Regular 1.5 Titanium rails
Headset	Syncros - Acros Angle adjust & Cable Routing HS System +-0.6° head angle adjustment ZS56/28.6 – ZS56/40 MTB
Wheelset	Syncros Silverton 2.0-30 CL F: 15x110mm R: 12x148mm 30mm Tubeless ready rim / 28H / XD Driver Syncros Axle w/Removable Lever with 6mm Allen T30 and T25 Tools
Front Tire	Maxxis Rekon Race / 29x2.4" / 120TPI Foldable Bead Tubeless Ready / EXO
Rear Tire	Maxxis Rekon Race / 29x2.4" / 120TPI Foldable Bead Tubeless Ready / EXO
Extras	SRAM AXS Powerpack
Accessories	Transport Axle
