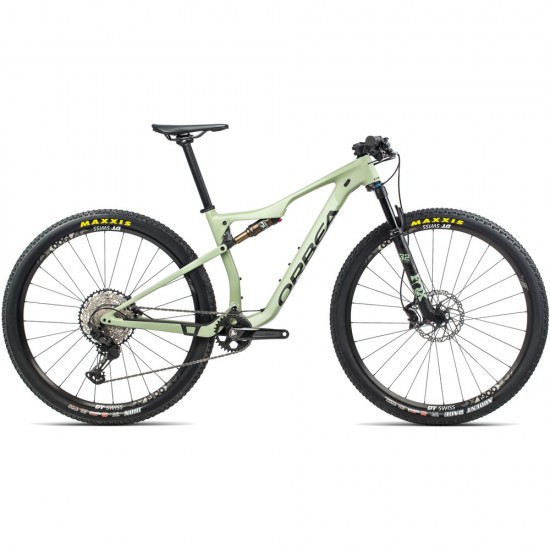

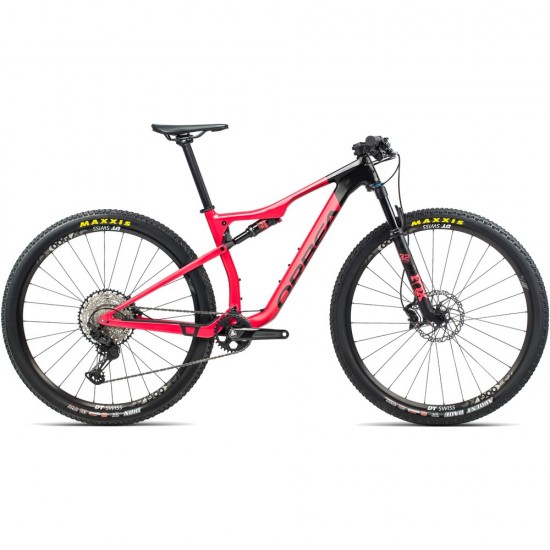

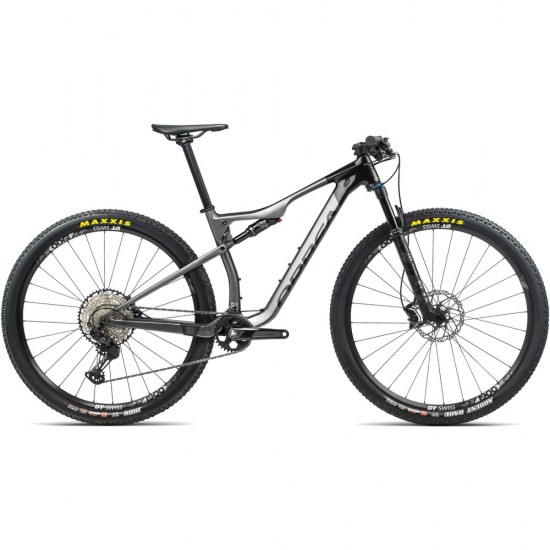

ORBEA OIZ M30 MOUNTAIN BIKE 2021
Excelling within any cross country riding scenario thanks to its racing-inspired design and accurate components, the Orbea Oiz M30 Mountain Bike delivers even the most experienced riders to the finish line with increased speed and heightened composure.
The OMR carbon main frame is light and responsive and is complemented by the stiff and efficient alloy rear triangle. These two frame parts are joined by the refined UFO suspension design that saves weight by reducing pivot points and combines with the FOX damping unit to infuse a progressive shock rate for heightened rear wheel traction. Line accuracy is improved by the plush suspension afforded by the FOX 32 Float SC Factory Performance while an aggressive, race-inspired frameset geometry gives sharp handling and a perfect riding position for efficient power transfer.
DT Swiss X-1900 wheels use their 29” alloy rims to grant acceleration and robustness and roll with heightened momentum over even the most irregular of surfaces. A Shimano Deore and XT gear partnership changes across its ratios with smooth actuation and hydraulic disc brakes, also from Shimano, stop with power and modulation no matter the trail conditions.
The Oiz is designed for fast, experienced riders who demand a super light and efficient full suspension bike for technical XC courses and high-performance cross country riding
A lightweight OMR carbon mainframe with an alloy rear triangle delivers efficiency, stiffness and strength
UFO rear suspension design reduces pivot points and combines with the innovative alloy linkage pattern to deliver lateral stiffness and a composed action
FOX i-line DPS Performance rear shock progressively manages impacts
FOX 32 Float SC Performance fork increases line accuracy and control with its 100mm of metered travel
World Cup Geometry is aggressive and precise for maximum power transfer and rapid handling
DT Swiss X-1900 Spline 25c 29” alloy wheels are stiff, strong and light
Shimano Deore and XT gear configuration changes without fault and is durable
Shimano hydraulic disc brakes are powerful and modulated regardless of riding conditions
Frame Orbea Oiz Carbon OMR main frame, AlloyLink rear triangle, Boost, PF92 bottom bracket, Taper UFO2, I-Line shock
Fork FOX 32 Float SC Performance, 100mm travel, Remote Push-Unlock, QR15x110
Rear Shock FOX i-line DPS Performance, 100mm travel, Remote Push-Unlock, Evol custom tune, 190x40mm
Headset Acros Alloy 1-1/8 - 1-1/2" Integrated
Stem Orbea OC1, 31.8mm interface, -7 degree (Length
Handlebar Orbea OC1 Flat, 31.8mm diameter, 740mm width
Front Brake Shimano M6100, hydraulic disc
Rear Brake Shimano M6100, hydraulic disc
Brake Levers Shimano M6100, hydraulic disc
Rear Derailleur Shimano XT M8100 SGS Shadow Plus, 12-speed
Shift Levers Shimano Deore M6100 I-Spec EV, 12-speed
Chain Shimano M6100, 12-speed
Cassette Shimano CS-M7100, 10-51t, 12-speed
Crankset Shimano MT611, 32 tooth chainring (Length
Front Wheel DT Swiss X-1900 Spline 25c TLR CL, Boost axle
Rear Wheel DT Swiss X-1900 Spline 25c TLR CL, Boost axle
Front Tyre Maxxis Ikon 2.2" FB, 120tpi, 3C Exo, tubeless-ready
Rear Tyre Maxxis Ikon 2.2" FB, 120tpi, 3C Exo, tubeless-ready
Saddle Fizik Taiga S-alloy rail
Seatpost Orbea OC2 alloy forge head, 27.2 diameter, 0mm offset
Pedals Available to be purchased separately
Accessories Orbea OC chainguide
